Ascot Vale House

let the light in - making the most of a small site

Small, sustainable and spacious. This family home demonstrates how we might take on the challenge of designing dwellings for our increasingly urban cities. Our Australian cities are growing rapidly and we are becoming an increasingly urbanised society. As we grow towards 8 million by 2050, we can either intensify or spread out.

It is well established that greater density can drive an economy that in turn we can harness to drive better social and environmental outcomes - improved provision of services and amenity within our immediate neighbourhoods, better levels of service in our public transport, and even greater affordability. This is something that we are passionate about and is a central focus for the practice.

"If our workplaces / shops / school / recreation are within close proximity, we might walk or ride rather than drive to them and we might create the foundation for a healthier and a more connected society. Even saying hi to someone as we pass in the street begins to form a greater sense of community. We increasingly become an "us" rather than a "me" and this can have profound consequences - well-being, safety, intergenerational living, growth of support networks, cultural understanding and exchange. This is how increased density, or intensity, can enhance our lives and create better communities and better cities."
--- Andrew Milward-Bason

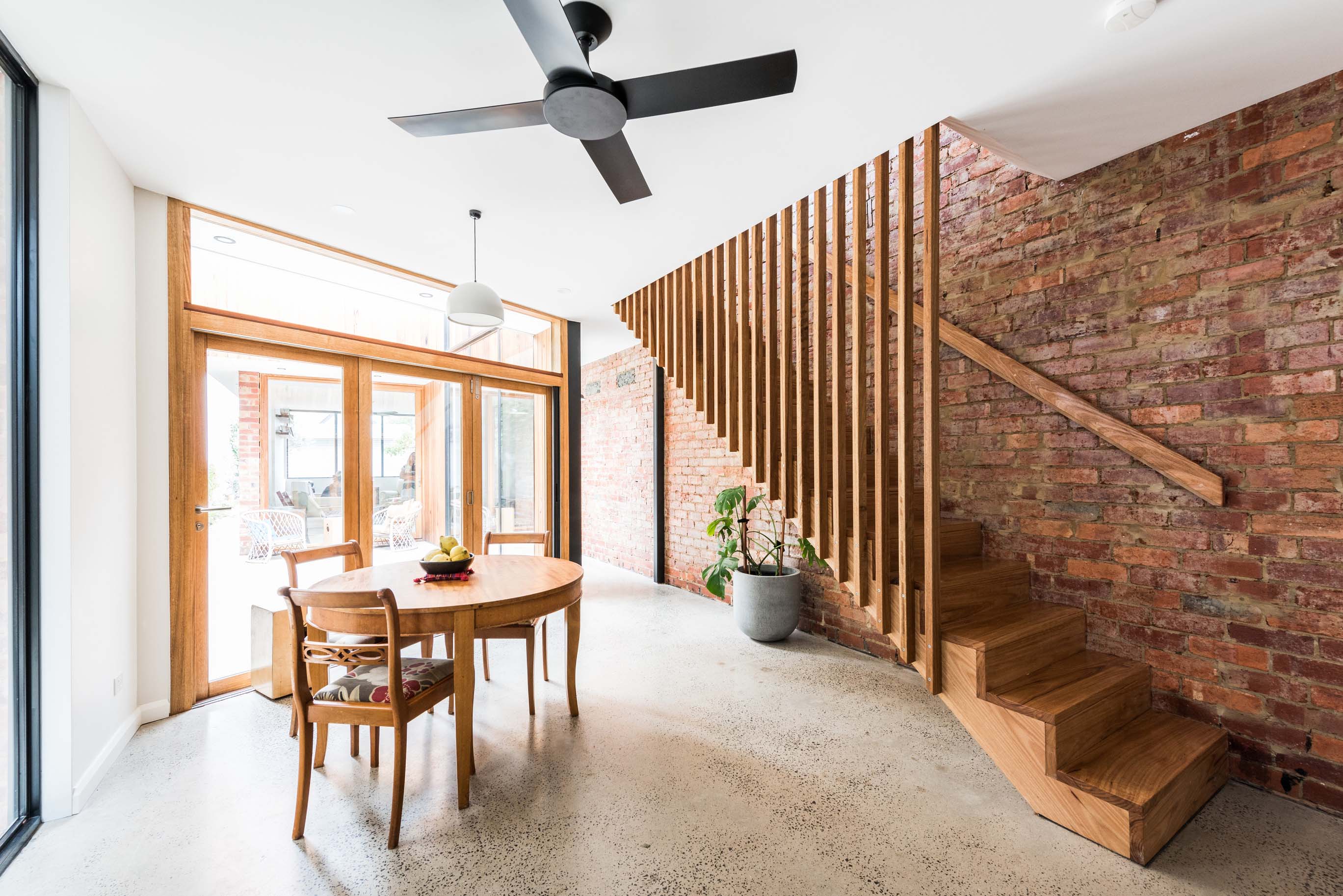

View toward dining and courtyard | Photography: Jessie May

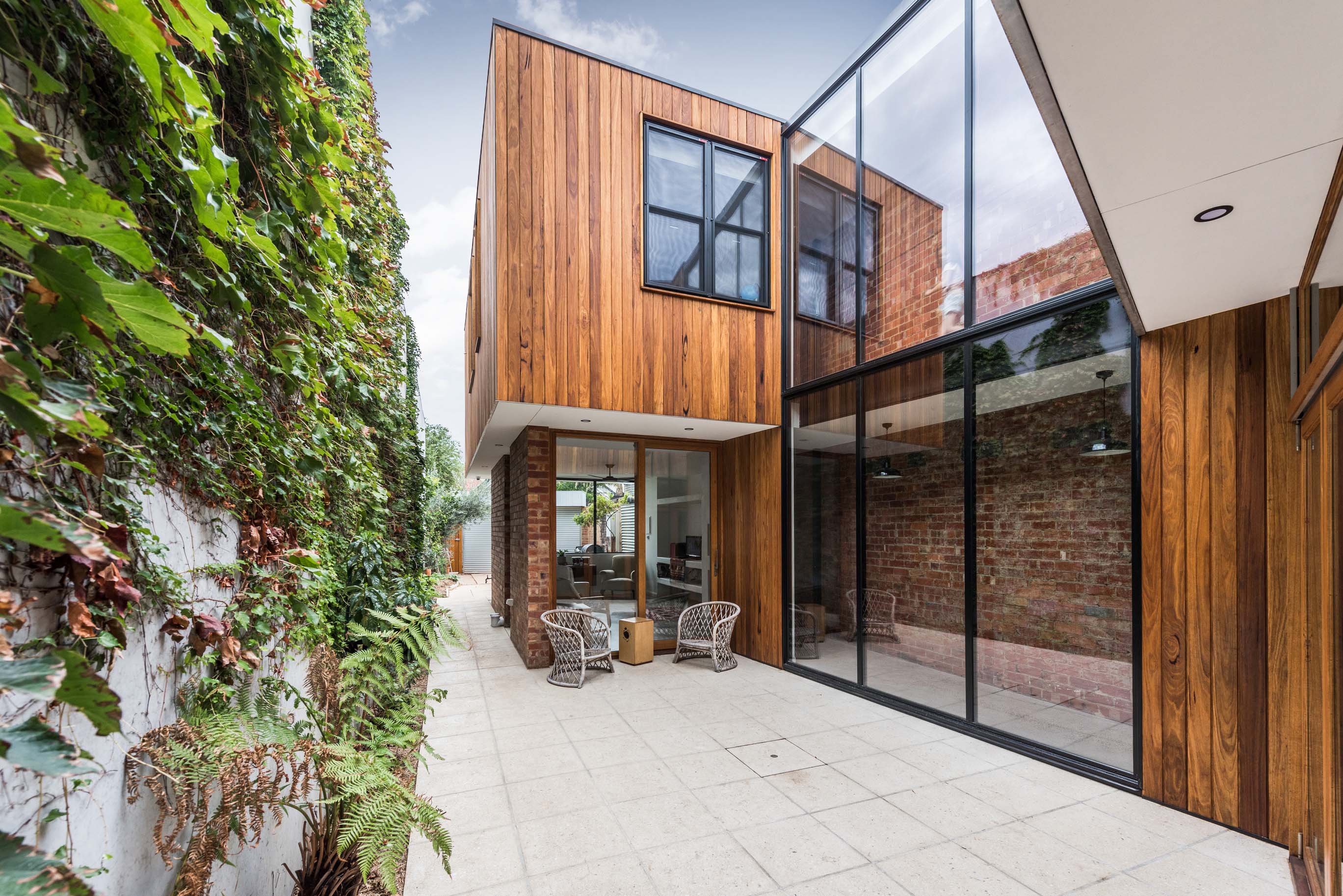

Sitting on a 5.5m wide site, and bounded by 6m high walls and behind an existing shop, this 3 bedroom family home in Melbourne's inner west has deployed a number of clever strategies to transcend its constraints. A light filled courtyard occupies the centre of the home, creating a sense of interconnectedness and expansiveness, where in reality the dwelling is in some places as little as one metre in width. The courtyard allows daylight to enter deep into the living spaces despite a challenging orientation. It also drives a passive cross ventilation strategy across the entire home, through creating a pressure differential - a device that has been used for centuries. A double height glazed wall also partially acts as a trombe wall, capturing early morning solar gain onto the retained masonry party wall and providing passive heating in winter. In warmer months this is able to be controlled by blinds.

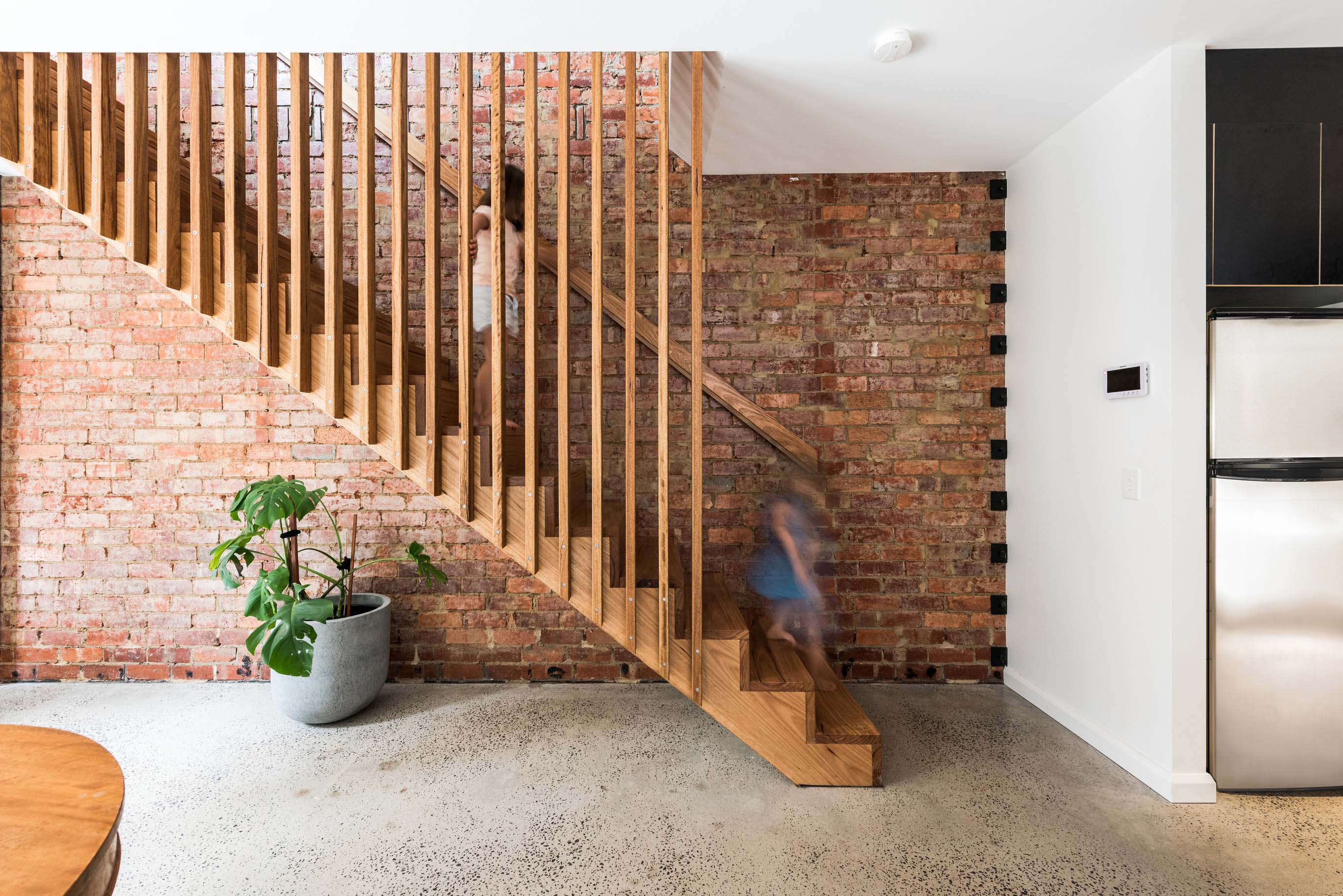

Timber stair with timber battens | Photography: Jessie May

The original brick party wall has been uncovered and cleaned back to expose its rich warmth throughout the main axis of the dwelling. Not only does this avoid the use of new materials to construct this facade but both dwellings on either side of the party wall serve to insulate each other. Bricks from the original dilapidated structure on-site have been reused in the facade of the ground floor, and other elements were recycled through careful hand demolition and segregation of materials. Locally sourced recycled materials were used throughout the dwelling, including the timber stairs, floorboards, re-purposed internal solid timber doors, recycled timber shelves in the living room and the reconditioned steel framed window in the kitchen.

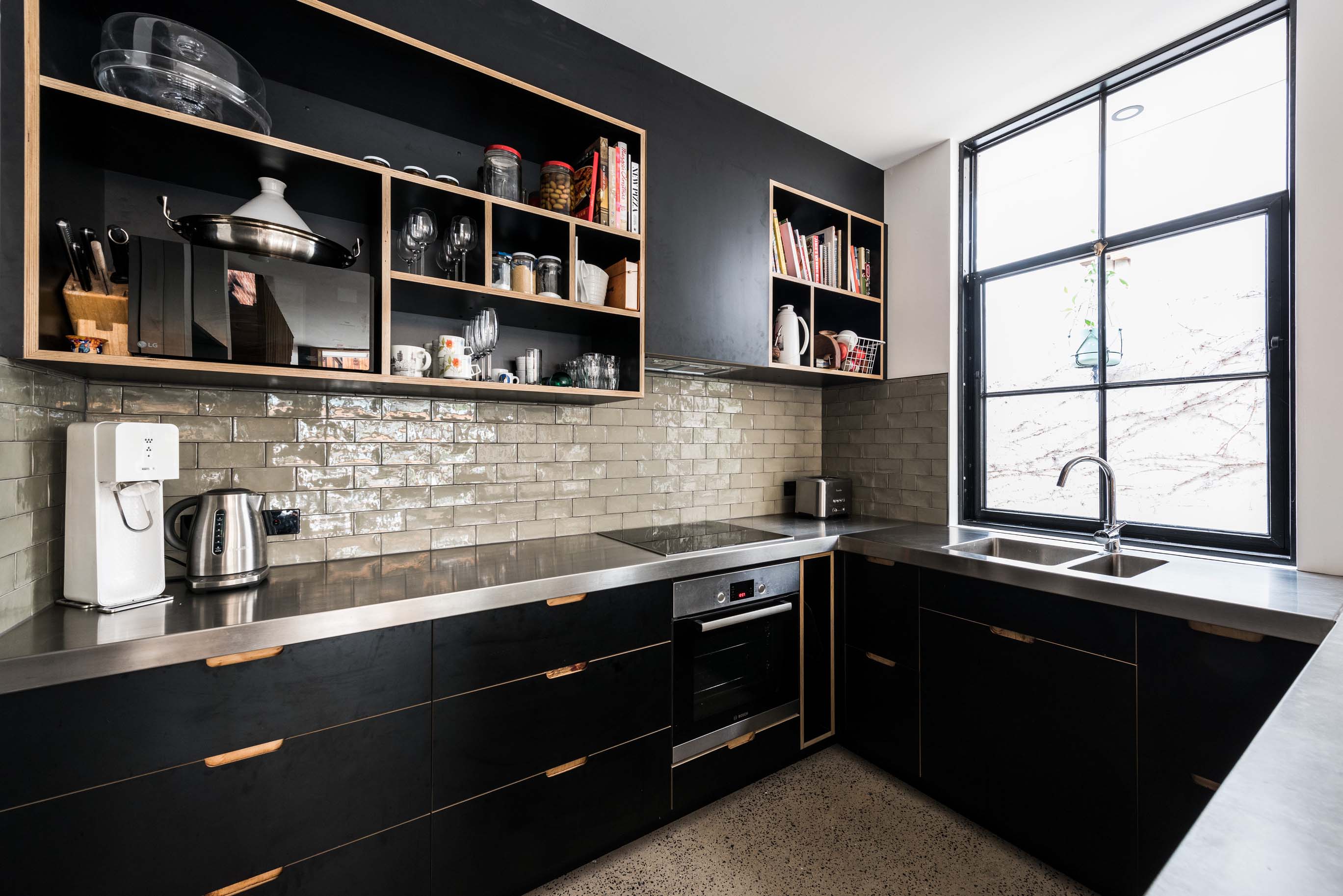

View to kitchen | Photography: Jessie May

The original brick party wall has been uncovered and cleaned back to expose its rich warmth throughout the main axis of the dwelling. Not only does this avoid the use of new materials to construct this facade but both dwellings on either side of the party wall serve to insulate each other. Bricks from the original dilapidated structure on-site have been reused in the facade of the ground floor, and other elements were recycled through careful hand demolition and segregation of materials. Locally sourced recycled materials were used throughout the dwelling, including the timber stairs, floorboards, re-purposed internal solid timber doors, recycled timber shelves in the living room and the reconditioned steel framed window in the kitchen.

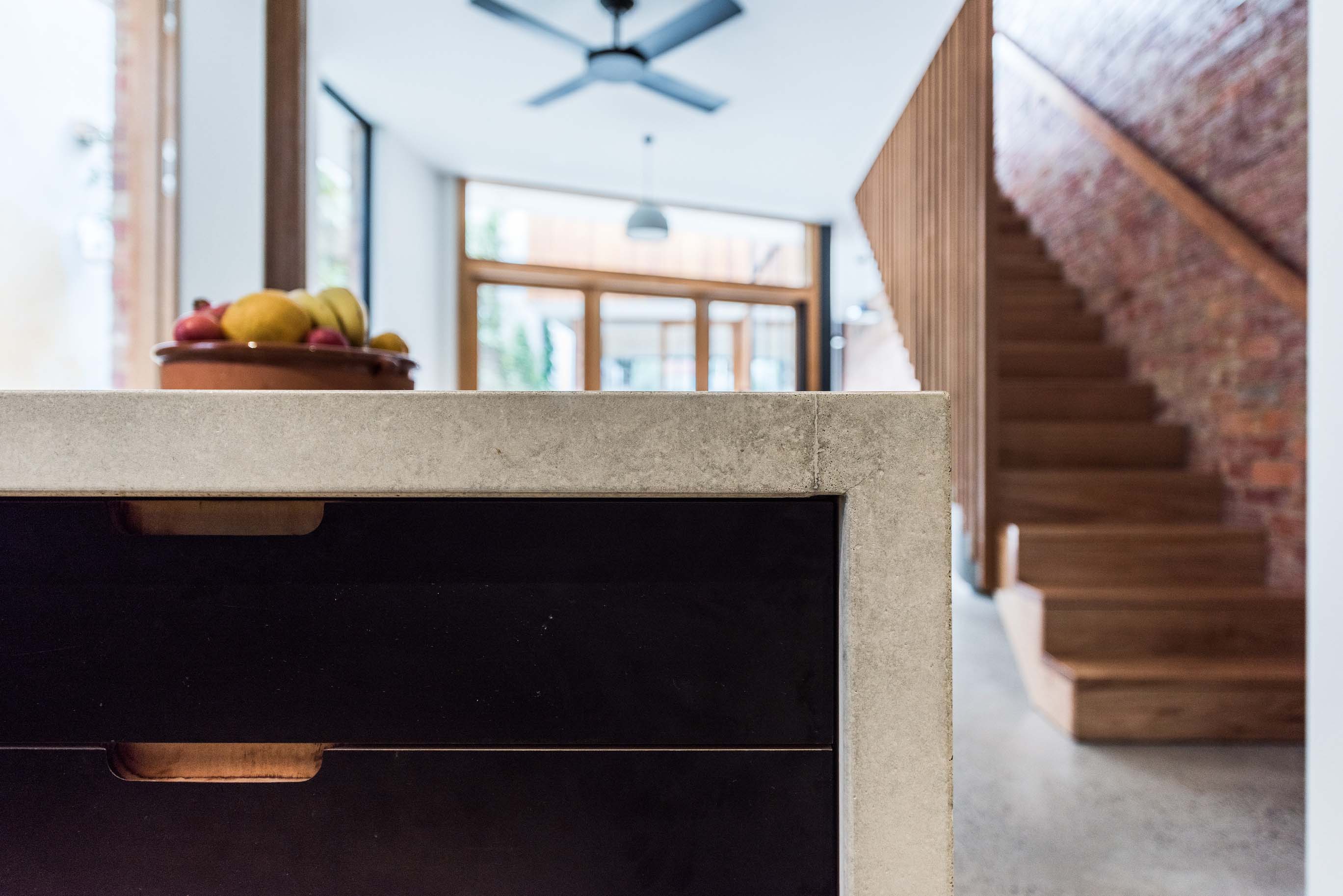

Kitchen bench | Photography: Jessie May

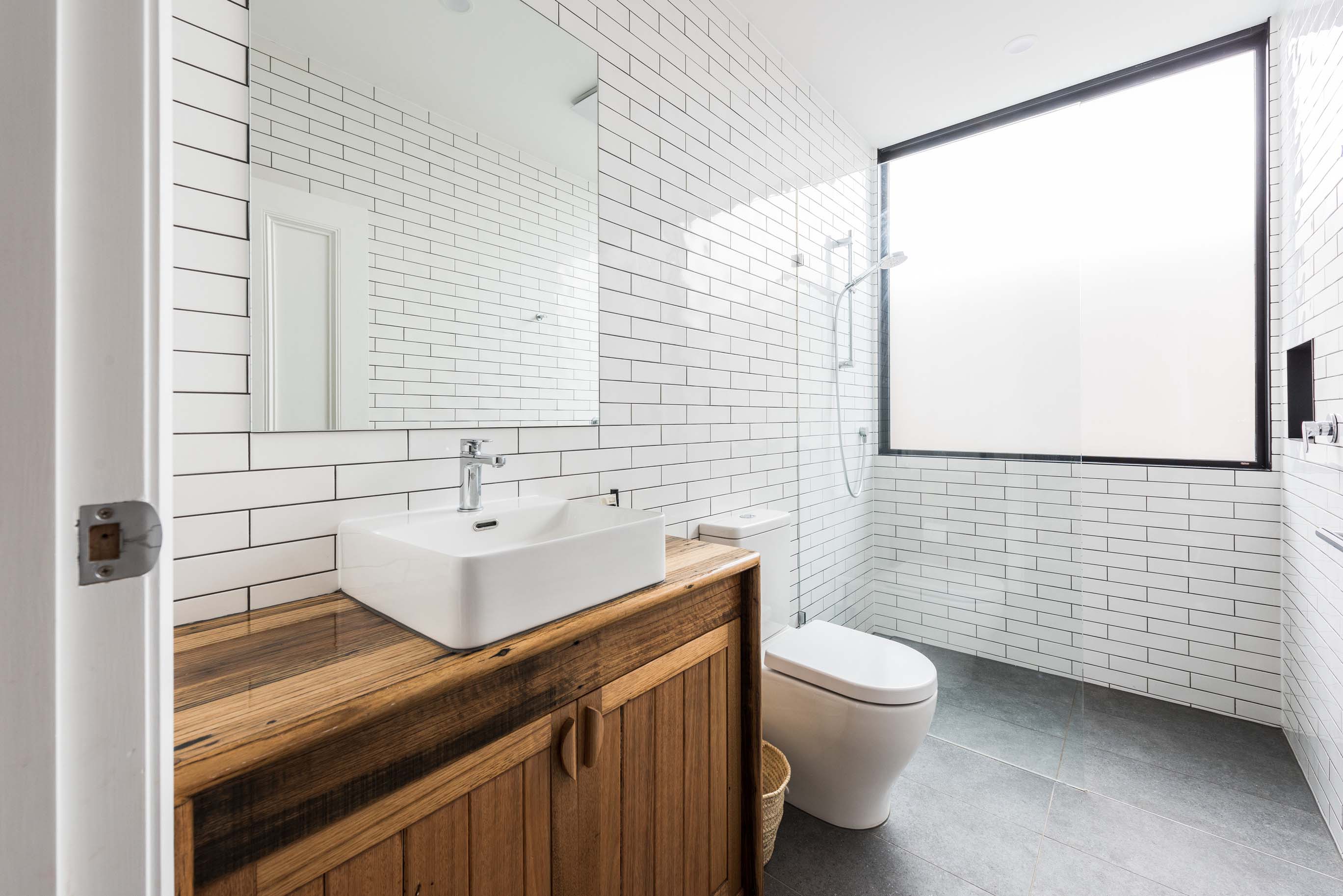

First floor bathroom | Photography: Jessie May
Construction timelapse video | Photography: Urban Creative Studio

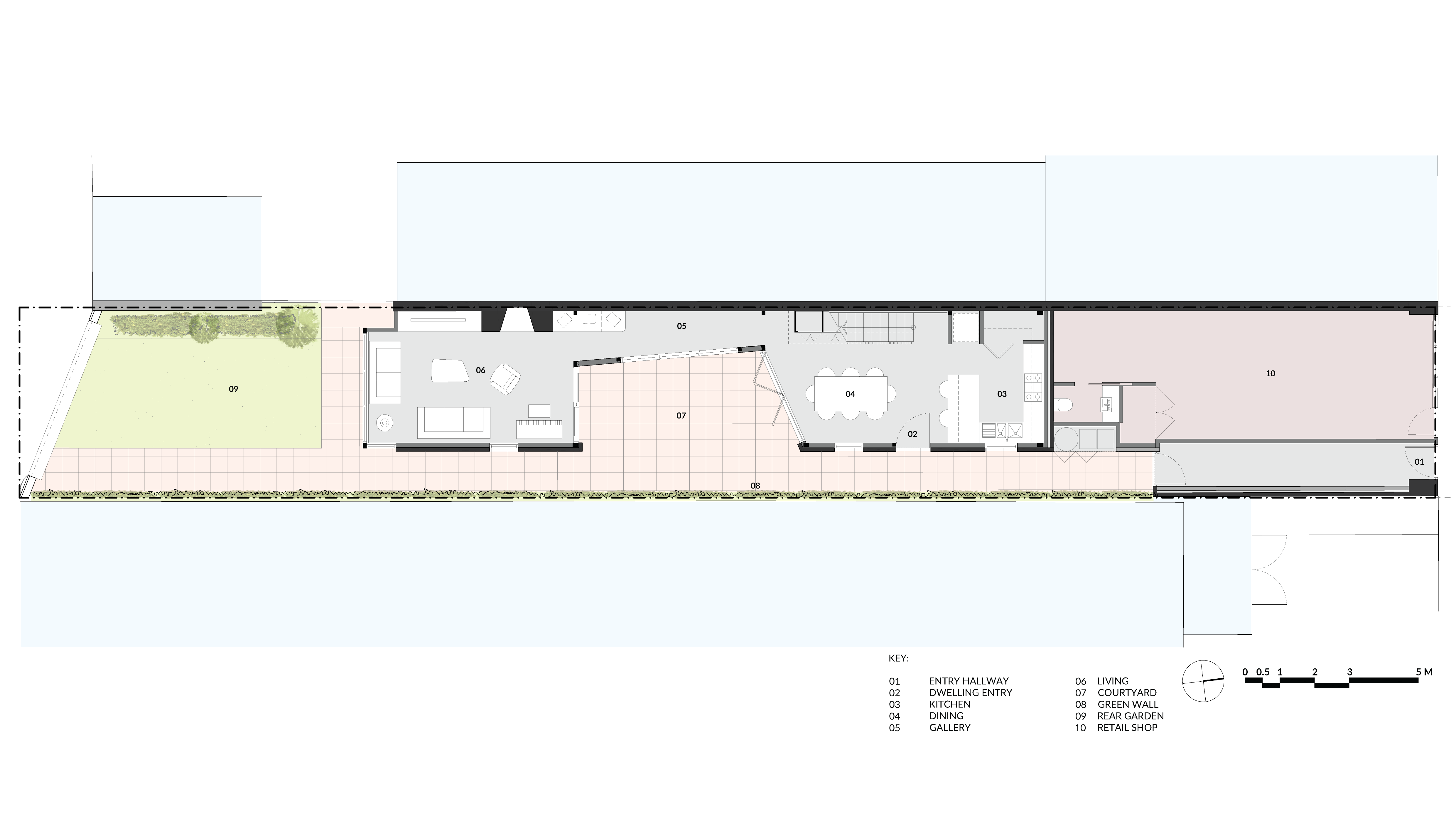

Proposed ground floor plan | Drawing: Urban Creative Studio

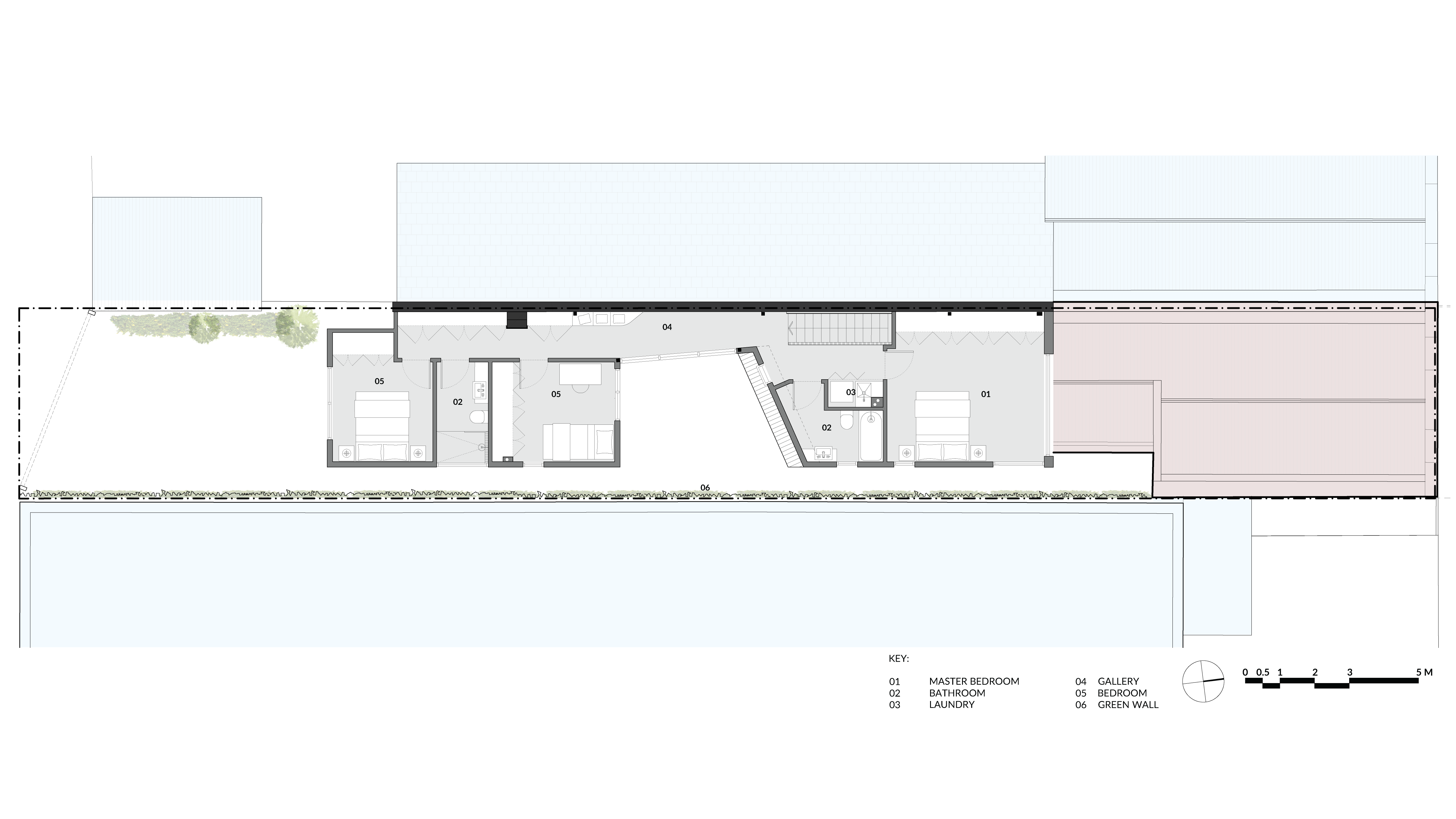

Proposed roof floor plan | Drawing: Urban Creative Studio
